Atlas Automotive Equipment - PLATINUM 14000 LB CERTIFIED ALIGNMENT LIFT

Features and Benefits:

• ALI Certified Lift
• 14,000 lb. Capacity
• Heavy Duty, Commercial Grade
• Alignment Lift, Includes Built in Slip Plates & Turntables
• Open Front Design for Better Access
• Extra Long Runways
• Adjustable Lock Ladder Design
• Higher Quality Powder Coat Finish

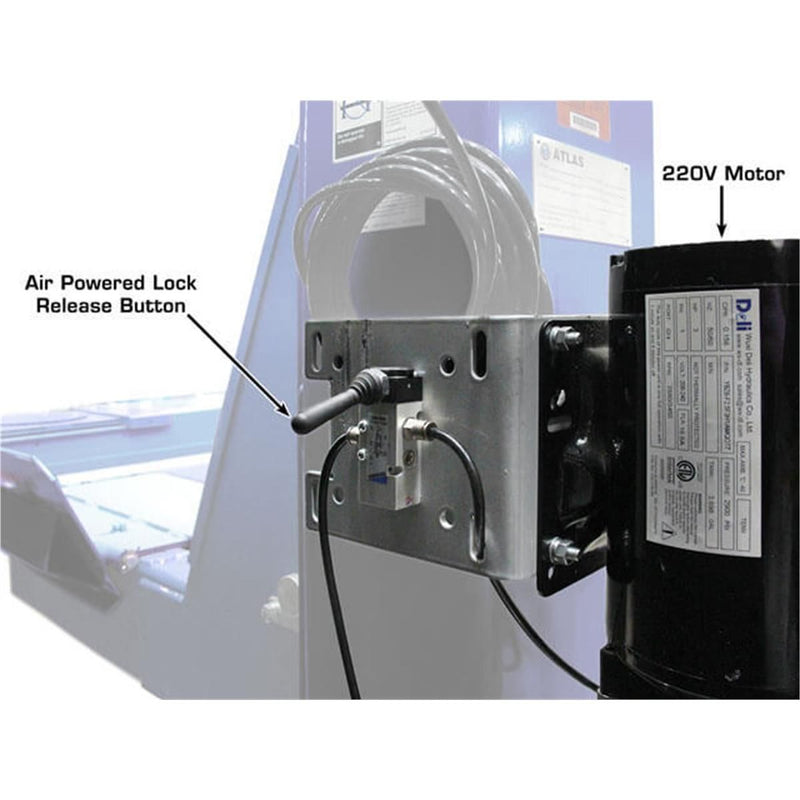

• Air Operated Single Point Lock Release (External Air Supply Required)

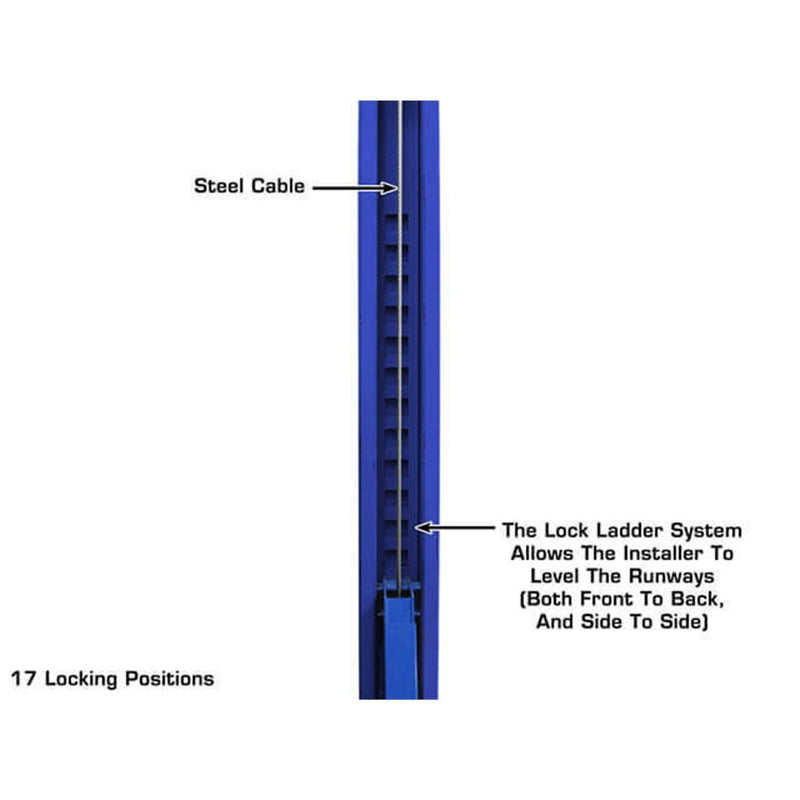

• Lock Ladder Design
• Double Lock Safety System
• Powder Coat Finish

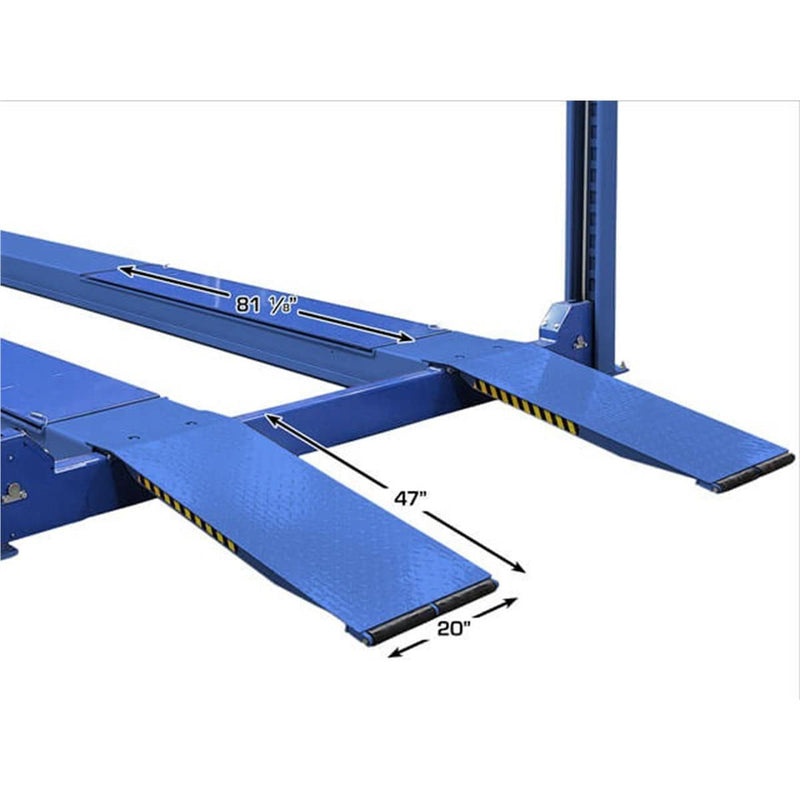

• Steel Approach Ramps Included

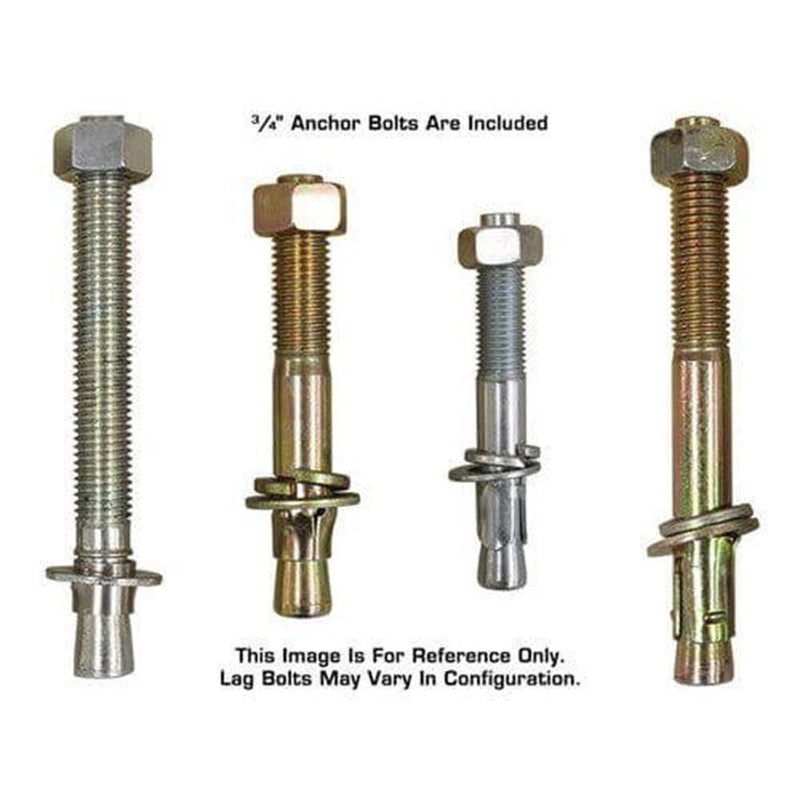

• Mounting Hardware Included
• Standard with Premium ALLY Power unit
• 220volt/1phase Electric Operation (Requires a 30amp Breaker)
• Shipping Weight: 4,462 LB.
• 5 yr Structural – 2 yr Hydraulic – 2 yr Power unit Warranty

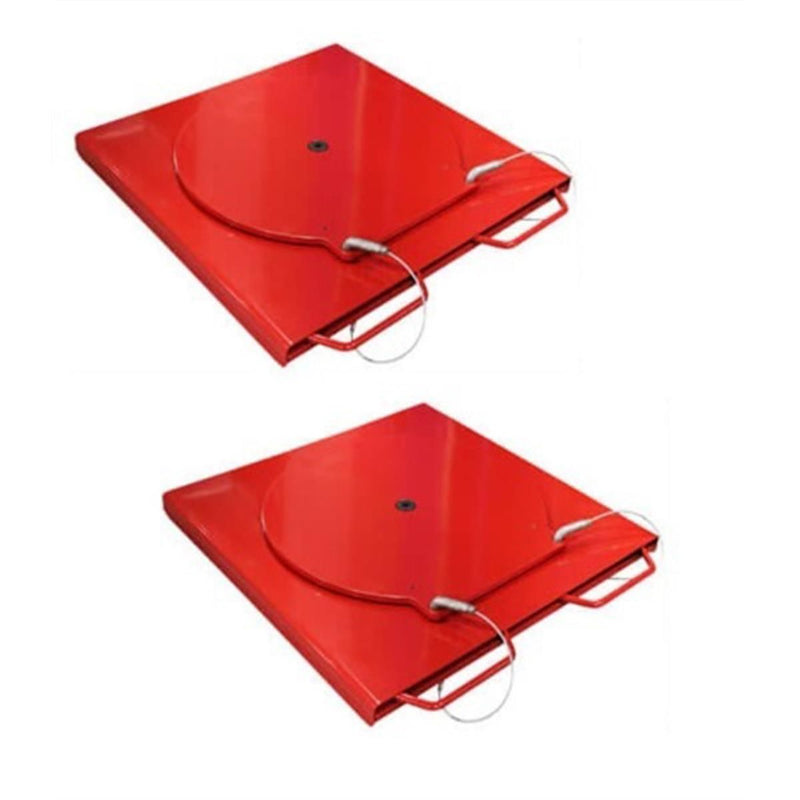

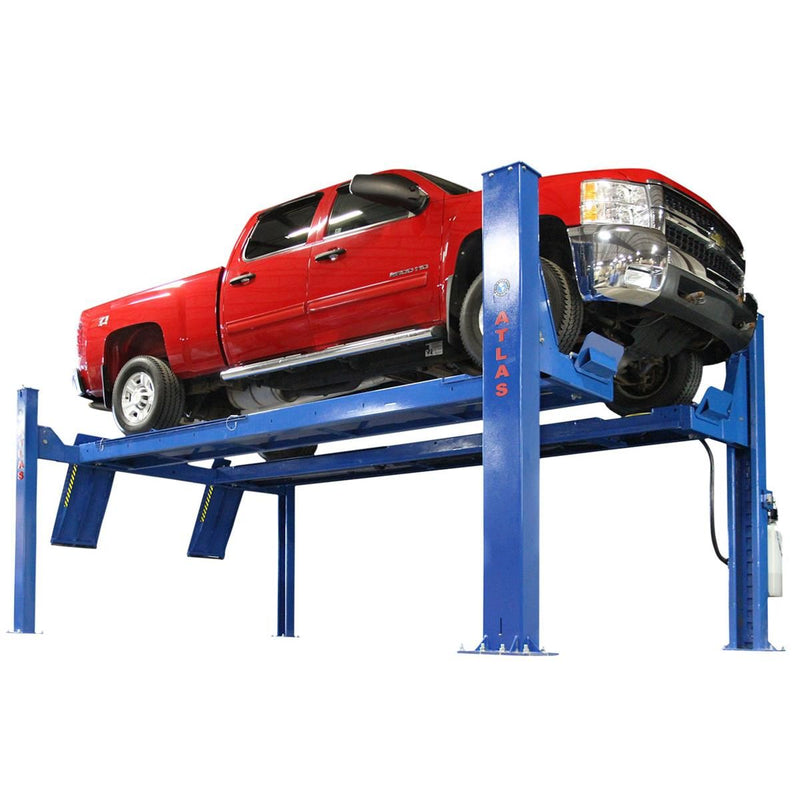

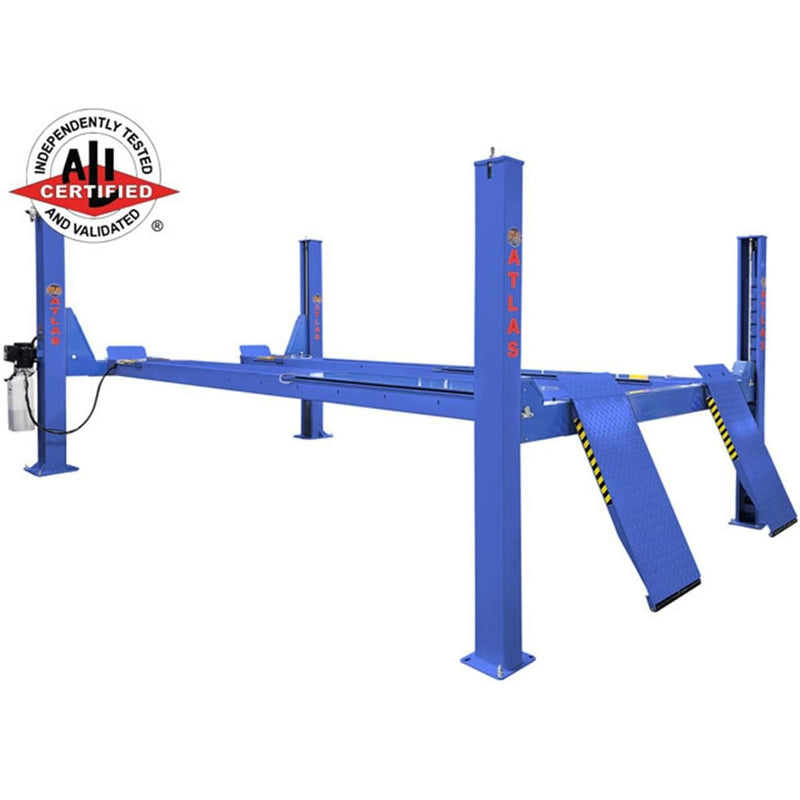

The Atlas® Platinum PVL14OF-EXT is a four post commercial grade Open-Front Alignment lift designed with the professional shop in mind. This lift has extra long runways and can accommodate a variety of cars, vans, SUVs, trucks, and commercial vehicles. the Open-Front design allows better access to the underside of vehicles during use. The AP-PVL14OF-EXT features built in slip plates and a pair of heavy duty turntables so the user can do wheel alignments.

The Platinum PVL14OF-EXT uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.

The Atlas® Platinum PVL14OF-EXT features “tracks” between the runways to allow the use of a rolling bridge jack (recommended is the Atlas® Platinum RJ7000) on the lift. Rolling jacks sold separately.

The Atlas® Platinum PVL14OF-EXT is also ALI certified and backed by one of the industry’s best warranties for an added peace of mind.

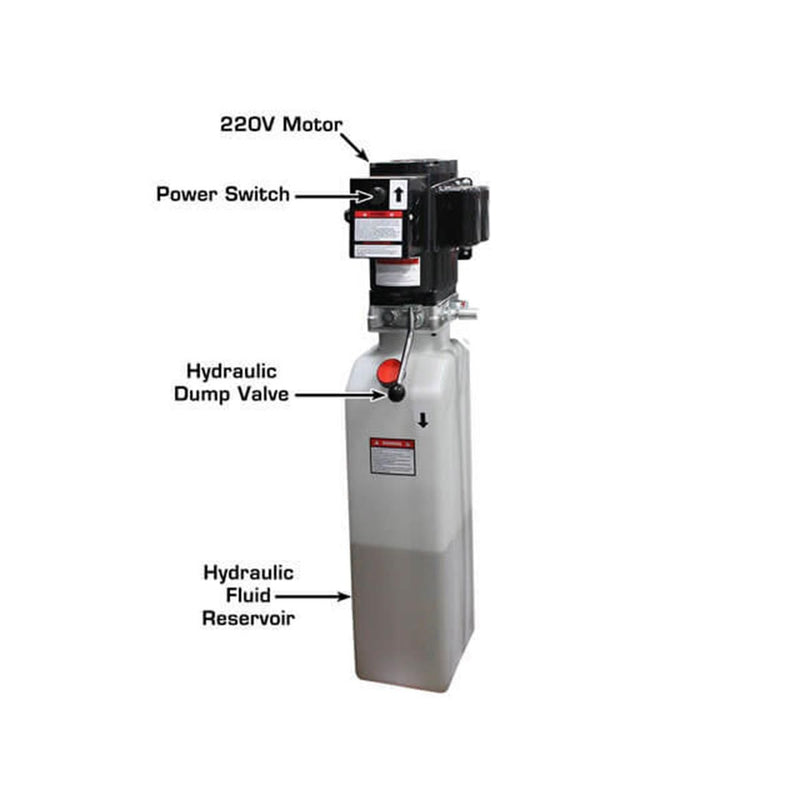

This product features an ALLY Hydraulic AL3000 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

Atlas® Platinum PVL14OF-EXT Specifications

• Capacity 14,000 lb.

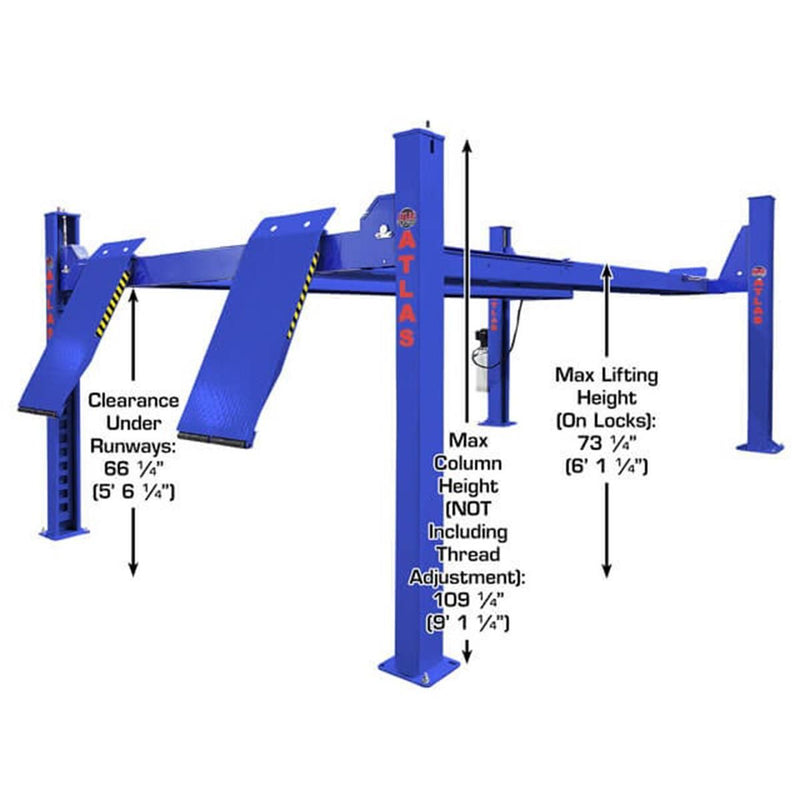

• Lifting Height 73 1/4" (6' 1 1/4")
• Overall Width Of Columns (Without Motor) 140 1/8" (11' 8 1/8")
• Overall Width Of Columns (With Motor) 148 3/4" (12' 4 3/4")
• Overall Length With Approach Ramp 272 1/8" (22' 8 1/8")
• Length Between Columns 207" (17' 3")
• Runway Length 223 1/2" (18' 7 1/2")
• Runway Width 20"
• Thickness Of Runway 7"
• Width Between Runways 42 3/4" (w/ Rail 39 1/4")
• Outside Runway To Outside Runway 83 1/8" (6' 11 1/8")
• Clearance Under Runways 66 1/4" (5' 6 1/4")
• Clearance Between Columns 116 3/8" (9' 8 3/8")

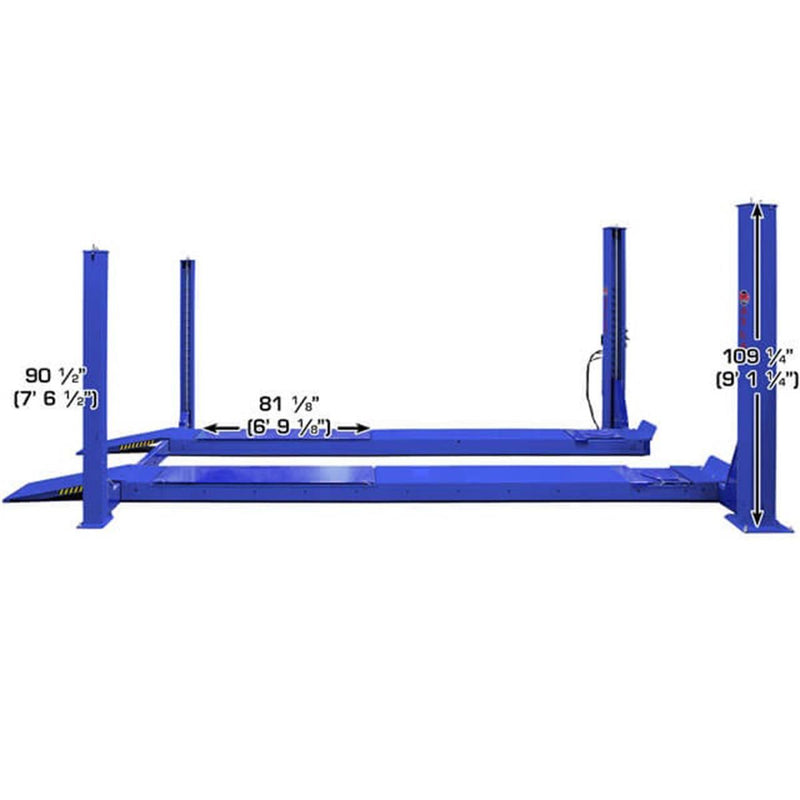

• Height Of Columns 92 1/2" (7' 8 1/2") Rear/109 1/4" (9' 1 1/4") Front
• Maximum Wheel Base 203" (16' 11")
• Drive Thru 94 1/2" (7' 10 1/2")
• Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
• Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)

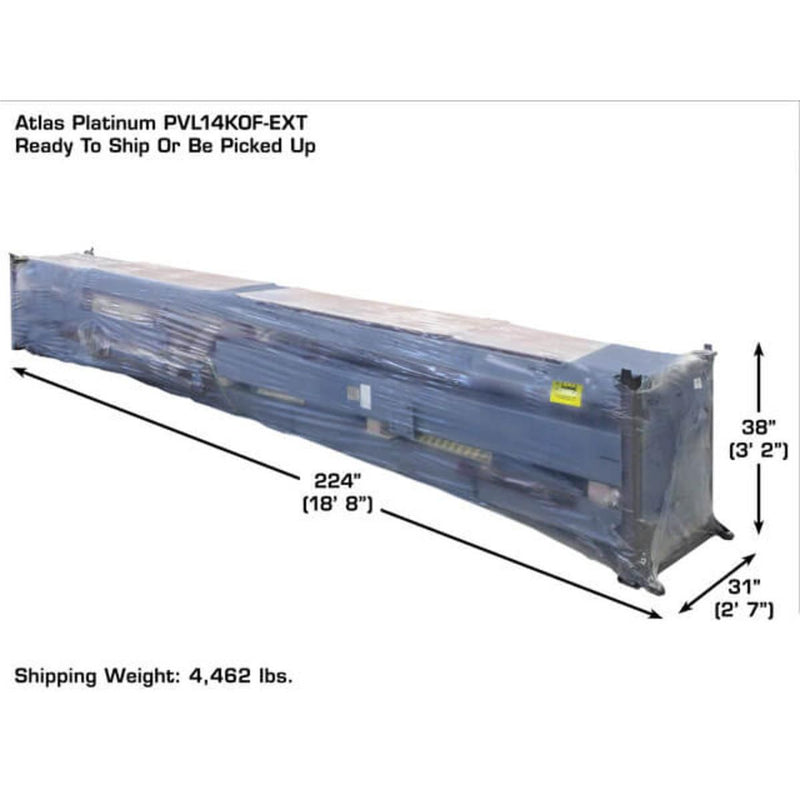

• Shipping Weight 4,462 LBS.

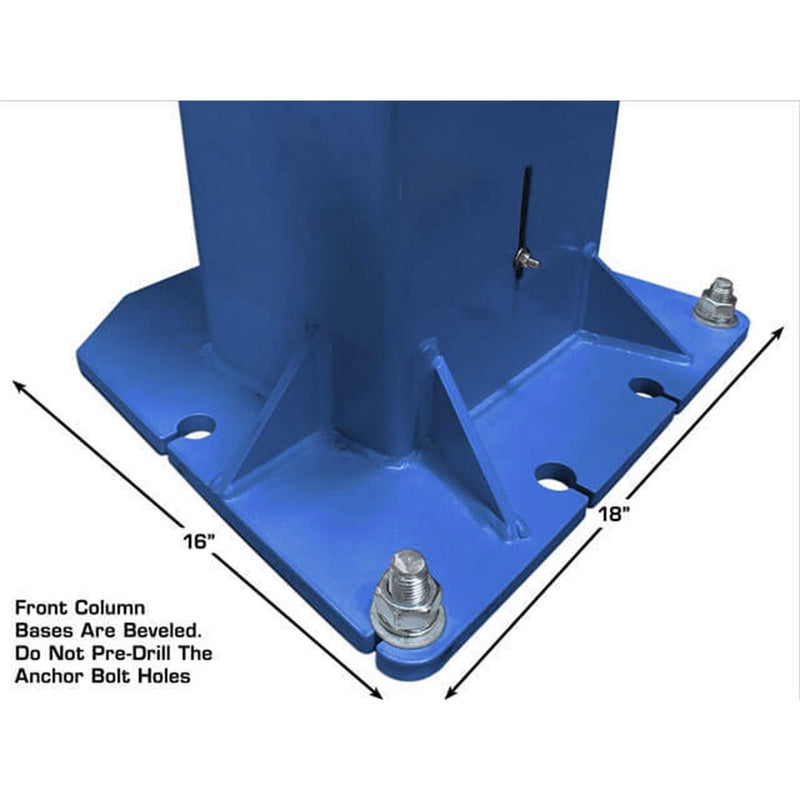

• Requires a minimum of 6" of concrete with a 3000 psi. rating
